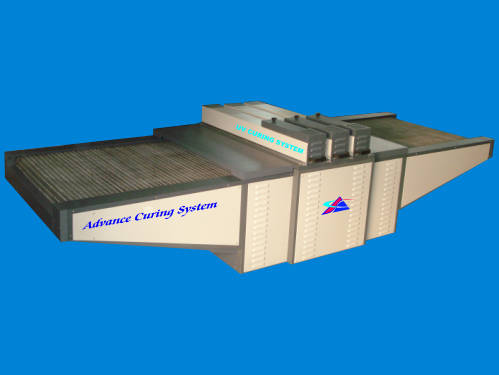

System
designed, manufactured and supplied to a
Government Research Organization for developing
specialty coatings.
Description

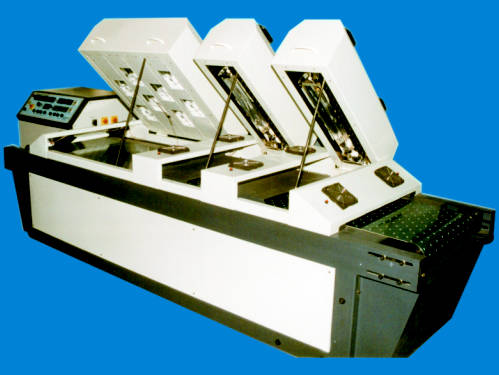

3 Lamp UV
Curing with shutter for a width of 40 Inches with PLC
Control, Variable Lamp Intensity, Touch Screen Operation.
Lamp Module
Complete with
ACS design reflector, cold mirror, hot mirror, VFD
controlled individual cooling, Thermal trips, etc.
Control Panel
Touch Screen
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Power
Supply
Power supply
built to suit Indian conditions with PLC controlled Continuously
Variable Lamp Intensity,.
Cooling
Centrifugal
Blowers controlled by VFD
Model
Stand Alone
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
12, 18, 20, 24, 25, 30, 32, 38 & 40 inches
UV Lamp wattage
200, 300, 400 & 450 watts/inch
Conveyor speed
Variable, with digital display
Conveyor Drive
AC or DC geared motor
Conveyor type
Heat resistant conveyor
Lamp cooling
Provided
No of lamps
1, 2 & 3 nos
Half power
Provided
Power
415 V + 5%, 50 Hz,
or as per customer specification.
click on the image to enlarge
Conveyorised UV System
Pneumatic Shutter controlled UV lamp Reflector.
PLC Control machine operation.
Hot Mirror Reflector to reduce process temperature.
MMI or HMI system operation.
Cold Mirror Reflector to reduce process temperature.
Cooling control by VFD for blower.
Auto control of Lamp Intensity w.r.t. line speed.
Online Radiometers for uniform UV intensity.
Conveyorised
Single UV Curing System
System
designed, manufactured and supplied for UV
applications listed below.
Description
Conveyorised Single Lamp UV
Curing.
Lamp Module
Complete with ACS design reflector with
ACS designed lamp hood cooling,.
Conveyor
PTFE Coated Mesh Belt with Vacuum
Hold-down , SS Belts, Sandwich Nylon
Belt
Control Panel
Illuminated Push Button
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Power
Supply
Power supply
built to suit any conditions,.
Cooling
Centrifugal
Blowers
Model
Stand Alone
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
12, 18, 20, 24, 25, 30, 32, 38 & 40 inches
UV Lamp wattage
200, 300, 400 & 450 watts/inch
Conveyor speed
Variable, with digital display
Conveyor Drive
AC or DC geared motor
Conveyor type
Heat resistant conveyor
Lamp cooling
Provided
No of lamps
1, 2 & 3 nos
Half power
Provided
Power
415 V
+ 5%, 50 Hz,
or as per customer specification.
click on the image to enlarge
Application:
UV Screen Printing.
UV Solder Mask for PCB.
UV Spot Lamination.
UV Conformal Coating.
UV Metal Printing.
UV Glass Bonding.
UV Coating.
UV End of the Press.

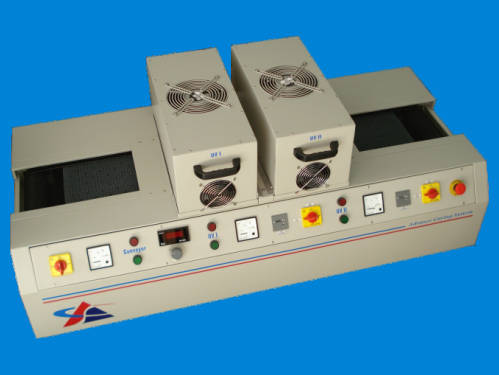

Conveyorised
2 Lamp Tabletop
UV Curing System
System
designed, manufactured and supplied to a
R&D Organization for developing
specialty coatings.
Description
2 Lamp UV
Curing Tabletop model of 6-12 Inches Curing width.
Lamp Module
Complete with
ACS design reflector,
ACS designed lamp hood cooling,
Conveyor
PTFE Coated Mesh Belt with Vacuum
Hold-down , SS Belts, Sandwich Nylon
Belt
Control Panel
Illuminated Push Button
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Power
Supply
Power supply built to suite any
conditions.
Cooling
Axial Flow Fans..
Model
Tabletop
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
06,08 & 12 inches
UV Lamp wattage
200
& 300 watts/inch
Conveyor speed
Variable, with digital display
Conveyor Drive
AC or DC geared motor
Conveyor type
Heat resistant conveyor
Lamp cooling
Provided
No of lamps
1
or 2
Half power
Provided
Power
220 V / 415 V
+ 5%,50Hz,
or as per customer specification.
click on the image to enlarge
Application:
UV Screen Printing.
UV Solder Mask for PCB.
UV Spot Lamination.
UV Conformal Coating.
UV Metal Printing.
UV Glass Bonding.
UV Coating.
UV Adhesive Curing.

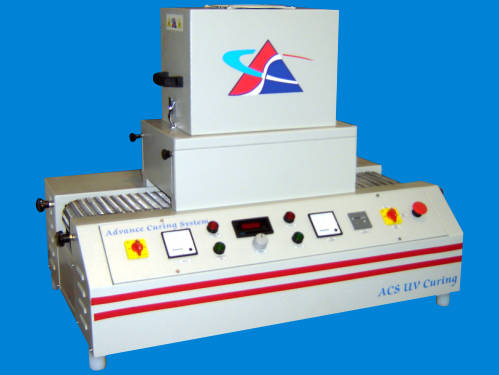

Conveyorised
Single Lamp Tabletop
UV
Curing System
System designed,
manufactured and supplied
to Industries for Adhesive
Curing
Description
UV
Curing Tabletop model of 6-12 Inches Curing width.
Lamp Module
Complete with
ACS design reflector.
Conveyor
PTFE Coated Mesh Belt with Vacuum
Hold-down , SS Belts, Sandwich Nylon
Belt
Control Panel
Illuminated Push Button
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Power
Supply
Power supply built to suite any
conditions.
Cooling
Axial Flow Fans..
Model
Stand Alone
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
06,08 &12 inches
UV Lamp wattage
200 & 300 watts/inch
Conveyor speed
Variable, with digital display
Conveyor Drive
AC or DC geared motor
Conveyor type
Heat resistant conveyor
Lamp cooling
Provided
No of lamps
1 or 2 nos
Half power
Provided
Power
220 V / 415 V
+ 5%,50Hz,
or as per customer specification.
click on the image to enlarge
Application:
UV Screen Printing.
UV Solder Mask for PCB.
UV Spot Lamination.
UV Conformal Coating.
UV Metal Printing.
UV Glass Bonding.
UV Coating.
UV Adhesive Curing.
Interdeck UV
Curing Module with Pneumatic Shutter
System was
designed, manufactured and supplied to
Security Printing Press for Printing Cheques &
Drafts on Web Offset.
Description
Interdeck UV
Curing Module.
Lamp Module
Complete with
ACS design reflector, cold mirror, hot mirror, VFD
controlled individual cooling, Thermal trips, etc.
Power
Supply
Power supply
built to suit any conditions with PLC controlled Continuously
Variable Lamp Intensity.
Control Panel
Touch Screen
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Cooling
Centrifugal
Blowers controlled by VFD.
Compact UV Curing Module is
used for UV curing application to cure
lacquers, inks and surface coatings. Quartz
UV lamp is mounted on a designed reflector,
with shutter which is operated by pneumatic
rotary actuator.
These modules can be placed
across the web with mounting brackets with
rollers to provide smooth web transfer.
Stand alone control panel with standard
controls. UV lamps are provided with blowers
for cooling. We build system with various
optional features on request.
Hour indicator provided for
lamp usage indication. Complete panel
controls like on/off indicator, lamp hour
indicator, Amp meter, with required load
contactor. The system can be supplied with
features like continuously variable lamp
power from 40 % to 100 %, controls with PLC,
with two line display MMI ot Touch screen
for process information.
Model
Interdeck
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
12, 18, 20, 24, 25, 30, 32, 38 & 40 inches
UV Lamp wattage
400 &
500 watts/inch
Web speed
Up to 1000 Feet per minute.
Shutter Operation
Pneumatic Rotary Actuator
Reflector Type
Cold Mirror Reflector
Lamp cooling
Provided
No of lamps
One in each module
Lamp Intensity
Continuously variable w.r.t. web
speed
Power
415 V
+ 5%, 50 Hz,
or as per customer specification.
click on the image to enlarge
Pneumatic Shutter controlled UV lamp Reflector.
PLC Control machine operation.
Hot Mirror Reflector to reduce process temperature.
MMI or HMI system operation.
Cold Mirror Reflector to reduce process temperature.
Cooling control by VFD for blower.
Auto control of Lamp Intensity w.r.t. line speed.
Online Radiometers for uniform UV intensity.
Tabletop Batch
type UV Curing Oven with PLC Control
System
designed, manufactured and supplied to a
Government Research Organization for developing
specialty coatings.
Description
UV
Curing Tabletop Batch Type for a curing width 4 inches x
06,08 & 12 inches.
Lamp Module
Complete with
ACS design reflector,
Power
Supply
Power supply
built to suit any conditions with PLC controlled Continuously
Variable Lamp Intensity,.
Control Panel
MMI
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Cooling
Axial Flow Fans./ Centrifugal Blower..
Model
Tabletop
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
06,08 & 12 inches
UV Lamp wattage
200 & 300 watts/inch
Substrate Loading
Draw type manual
loading
Curing Time
Timer with beeper/PLC
Timer Function
Timer starts only
after loading.
Lamp cooling
Provided
No of lamps
Single Lamp
Half power
provided
Power
230 V
+ 5%, 50 Hz,
or as per customer specification.
Application:
UV Screen Printing.
UV Solder Mask for PCB.
UV Spot Lamination.
UV Conformal Coating.
UV Metal Printing.
UV Glass Bonding.
UV Coating.
UV Adhesive Curing.
Custom Built
UV Curing for Adhesive Bonding
System
designed, manufactured and supplied to
Process Industries for Adhesive Bonding.
Description
UV
Curing Tabletop Batch Type for a curing width 4 inches x
06, 08 .12 & 18 inches.
Lamp Module
Complete with
ACS design reflector,
Power
Supply
Power supply
built to suit any conditions with PLC controlled Continuously
Variable Lamp Intensity,.
Control Panel
MMI
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
Cooling
Axial Flow Fans./ Centrifugal Blower..
Model
Stand Alone /
Tabletop
Lamp type
Medium Pressure Hg Quartz lamps.
Curing width
06 - 18 inches
UV Lamp wattage
200 / 300 watts/inch
Conveyor speed
Variable, with digital display
/ Punematic
Conveyor Drive
AC or DC geared motor
/ Punematic Pallet
Conveyor type
Heat resistant conveyor
/ Pallet
Lamp cooling
provided
No of lamps
1 or 2 nos
Half power
Provided
Power
230 /415 V
+ 5%, 50 Hz,
or as per customer specification.
Application:
UV Screen Printing.
UV Solder Mask for PCB.
UV Spot Lamination.
UV Conformal Coating.
UV Metal Printing.
UV Glass Bonding.
UV Coating.
UV Adhesive Curing.
Control Switch
Gear for UV Curing System with Touch screen &
PLC
System
designed & manufactured for UV Curing System
Operation.
Description
Control Switch Gear for UV Lamp
Operation.
Lamp Ballast
Magnetic Ballast, with Half Power option
or Continuously Variable Lamp Intensity.
Power
Supply
Power supply
built to suit any standard Input Supply,.
Control Panel
HMI /
MMI
Operation with Phase
indication, voltage display, Amp. Meter for UV
lamps.
