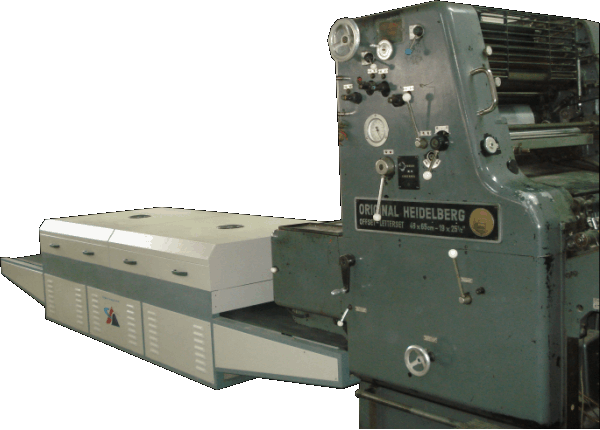

Conveyorised Infrared Drying System
Application * Aqua Coating * End of Offset Press Coating * Varnishing Machine Attachment * Screen Printing * Printing on PVC * Printing on Metal * Printing & Coating on Dials * Auto Instrument Panels Printing.
Mouse over Image to Zoom
Description:
Conveyorised Infrared Drying.
Lamp Module:
Complete with ACS design reflector with ACS designed lamp hood cooling.
Conveyor:
PTFE Coated Mesh Belt with Vacuum Hold-down, SS Belts, Sandwich Nylon / Teflon Belt.
Control Panel:
Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.
Power Supply:
Power supply built to suit any conditions.
Cooling:
Centrifugal Blowers.
ACS Conveyorised Infrared Drying System models are with Short-wave, Medium-wave & Hot air individually or in combination having drying width from 12 to 48 inches as standard. Lamp powers are made available from 50 to 400 watts per inch (20 to 160 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor belts. The systems are with length of 1 m, 2 m or to any length as per the application, custom built to suite the requirement.

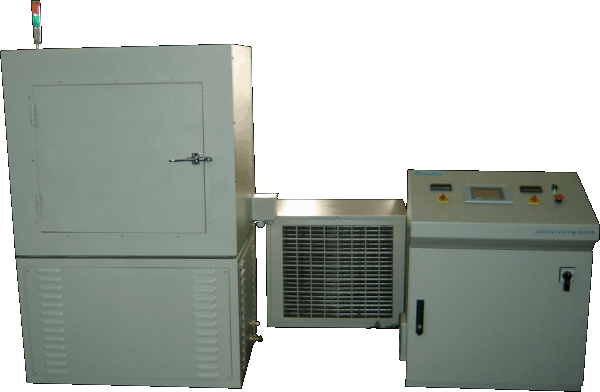

Near Infrared (NIR) Curing System
Application * Curing of Specialty Coatings * Screen Printing Samples * Laboratory Instrument * Nano Technology Coating * Metal Printing * Glass Bonding
Description:
Online IR Curing / Vulcanizing System.
Curing Dia:
12, 18, 20, 24 up to 150 MM.
IR Wattage:
50 (20) to 400 (160) watts/inch (watts/cm).
Reflector:
Complete with ACS design reflector with ACS designed lamp hood cooling.
Wavelength:
Systems will be supplied with Short-wave, Medium-wave, Ceramic Heaters, etc. as per the application
Web Speed:
Up to 300 Feet per minute.
Cooling:
Centrifugal Blowers.
Description:
NIR Curing System.
Lamp Module:
3 Stage OR Curing Unit with provision for Normal, High & Super Burn. Complete with ACS design reflector with ACS designed lamp hood cooling.
Material Handling:
Highly Insulate Cabinet, Manual Door Opening, Component Height adjustment tray.

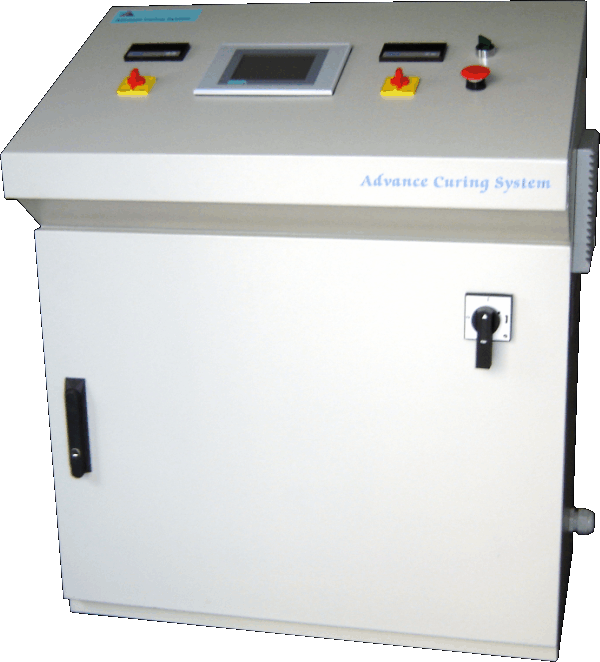

Control Panel:
Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.
Power Supply:
Power supply built to suit any conditions.
Cooling:
Refrigerated Air Cooling.
Mouse over Image to Zoom
The infrared emitters are placed in the drying chamber in a designed manner to suit faster heat up and drying. The Infrared elements are controlled by THYRISOR power packs developed by ACS UV Technologies, which provided precise temperature control which will be maintained for any long hours of operation, with an accuracy of + 2 deg C, Set and existing temperature is digitally displayed on the panel. Thyristor power pack also eliminates the problem of frequent IR element failure and replacement thus reducing maintenance cost.

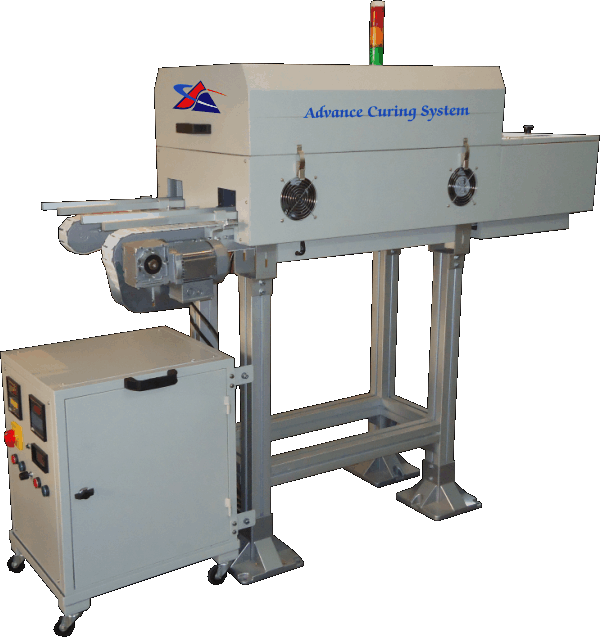

Online Infrared Dryer
Application * Online Web Printing * Online Label Printing * Online 3D Print Drying * Online Pad Printing * Offline Screen Printing * Offline Metal Printing.
Description:
Offline Infrared Dryer.
Curing Width:
12, 18, 20, 24, 25, 30, 32, 34, 38 & 40 inches.
IR Wattage:
50 (20) to 400 (160) watts/inch (watts/cm).
Reflector:
Complete with ACS design reflector with ACS designed lamp hood cooling.
Wavelength:
Systems will be supplied with Short-wave, Medium-wave, Ceramic Heaters, etc. as per the application
Speed:
Up to 45 Meters per minute.
Cooling:
Centrifugal Blowers.
Mouse over Image to ZoomCompact Infrared Conveyorised Drying System used for application to cure lacquers, inks and surface coatings. Quartz IR lamp is mounted on a designed reflector. These dryers can be placed along with the existing production line parallel or across to provide smooth output. Stand alone control panel with standard controls. Blowers are provided for IR Lamp and reflector cooling. We build system with various optional features on request. Complete panel controls like on/off indicator, Amp meter, with required load contactor. The system can be supplied with features like continuously variable lamp power from 40 % to 100 %, controls with PLC, two line display MMI or Touch screen for process information & operation.

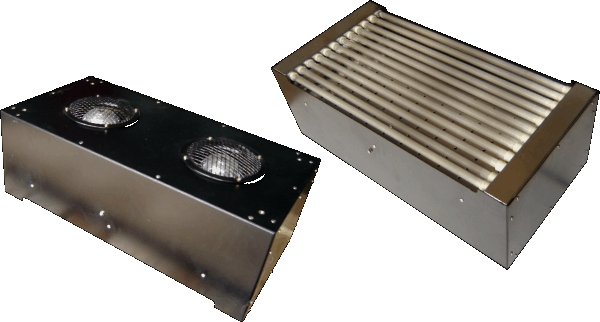

Online Web / Offset Infrared Drying System
Application * Online Web Printing * Online Label Printing * Online 3D Print Drying * Online Pad Printing * Offline Screen Printing * Offline Metal Printing * Online Numbering on Web.
Mouse over Image to ZoomCompact Infrared Inter Deck Drying System used for application to cure lacquers, inks and surface coatings. Quartz IR lamp is mounted on a designed reflector. These dryers can be placed along with the existing production line parallel or across to provide smooth output. Stand alone control panel with standard controls. Blowers are provided for IR Lamp and reflector cooling. We build system with various optional features on request. Complete panel controls like on/off indicator, Amp meter, with required load contactor. The system can be supplied with features like automatic continuously variable lamp power w.r.t. web speed, controls with PLC, two line display MMI or Touch screen for process information & operation.

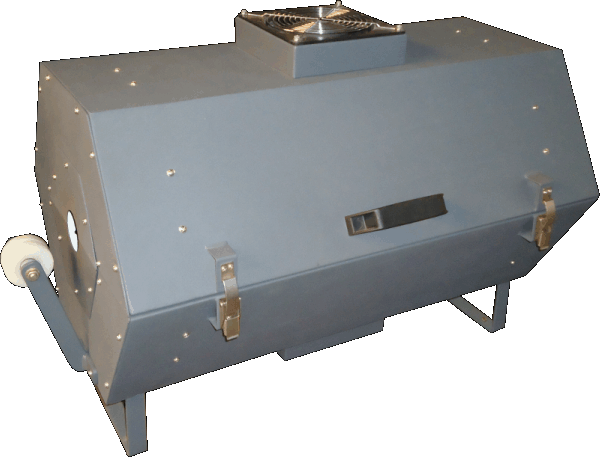

Infrared Online Vulcanizing System
Application * Flash Curing of Online Silicon Rubber Vulcanizing Line * Continues Rubber Vulcanizing Process * Online Coating of 3D Continues Production.
Description:
Interdeck IR Curing Module.
Curing Width:
12, 18, 20, 24, 25, 30, 32, 34, 38 & 40 inches.
IR Wattage:
50 (20) to 400 (160) watts/inch (watts/cm).
Reflector:
Complete with ACS design reflector with ACS designed lamp hood cooling.
Wavelength:
Systems will be supplied with Short-wave, Medium-wave, Ceramic Heaters, etc. as per the application
Web Speed:
Up to 1000 Feet per minute.
Cooling:
Centrifugal Blowers.
Mouse over Image to ZoomCompact Infrared Online Vulcanizing System System used for application to cure lacquers, inks and surface coatings. Quartz IR lamp is mounted on a designed reflector. These dryers can be placed along with the existing production line parallel or across to provide smooth output. Stand alone control panel with standard controls. Blowers are provided for IR Lamp and reflector cooling. We build system with various optional features on request. Complete panel controls like on/off indicator, Amp meter, with required load contactor. The system can be supplied with features like automatic continuously variable lamp power w.r.t. web speed, controls with PLC, two line display MMI or Touch screen for process information & operation

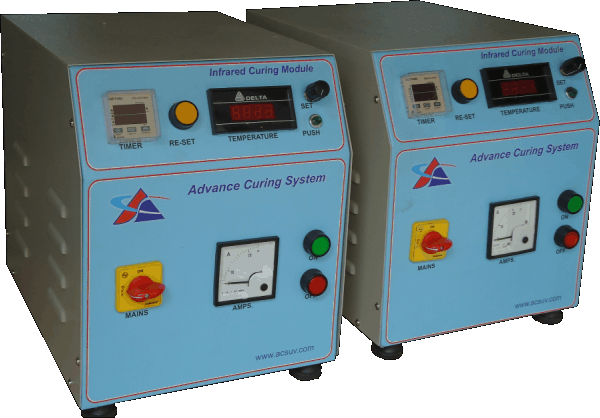

SCR Control for Infrared System
Application * Auto Components * Bonding of Glass with Metal * Paint Backing Lines * Syringe Needle Bonding * Auto Solenoid Switch Bonding * Glass Bonding * Curing Coating * Print Drying
Mouse over Image to Zoom
Compact Infrared SCR Controler system used for maintaining precise tempetature to an accuracy of + 2 degree C . Stand alone control panel with standard controls for blowers provided for IR Lamp and reflector cooling. We build system with various optional features on request. Complete panel controls like on/off indicator, Amp meter, with required load contactor. The system can be supplied with features like automatic continuously variable lamp power w.r.t. web speed, controls with PLC, two line display MMI or Touch screen for process information & operation
Custom built solutions for business development.
Our highly experienced promoters can turn any design into reality. Using practices that are considered the best quality standards of today, as well as the most modern technologies available, equipments are optimized for your production speed and will hold its own uniqueness as your business continues to grow. We are engaged in design and manufacture of UV & IR Systems required for high production rates with consistent quality which is today's need. Today we are of the well known designers & manufacturers who cater to stringent requirements of quality and productivity.
ACS UV Technologies has an innate understanding that as a client or prospective client you are looking for a company that can bring the most professional design ideas to your manufacturing requirements and give you a quality product that will streamline processes, increase efficiency and maximize reliability, which is why we continually adopt the latest technological advances to ensure that you benefit from innovative ideas.
ACS UV Technologies offer a full and complete package from initial enquiry to commissioning. Our expert specialist engineers have served the Automotive, Lighting, Heating, Printing, Coating and many other industries. Whether it be a simple hand held unit, or special purpose machine ACS has a solution for you. We have built on our skill base since our establishment in late 1994 and can now offer an extensive range of engineering resource and provide solutions up to the minute technology coupled with strong robust design.
