Conveyorised Single Lamp UV Curing System

Application * UV Screen Printing * UV Solder Mask for PCB * UV Spot Lamination * UV ConformalCoating * UV Metal Printing * UV Glass Bonding * UV Coating * UV End of the Press









                Mouse over Image to Zoom

Description:

Conveyorised Single Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Conveyor:

PTFE Coated Mesh Belt with Vacuum Hold-down, SS Belts, Sandwich Nylon / Teflon Belt.

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.

ACS Single Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 12 to 48 inches as standard.  Lamp powers are made available from 200 to 600 watts per inch (80 to 240 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor belts.  The systems are with 1, 2 & 3 lamps as per the application, custom built to suite the requirement.

Conveyorised Three Lamp UV Curing System

Application * UV Screen Printing * UV Solder Mask for PCB * UV Spot Lamination * UV Conformal Coating * UV Metal Printing * UV Glass Bonding * UV Coating * UV End of the Press







Description:

Batch type tabletop Single Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Component Handling:

Draw type component loading / unloading system. Audio beep after set cycle time.

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.

Description:

Conveyorised Single Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Conveyor:

Pallet Chain Driven Stop / Start Movement for Curing Cycle, with Loading & Unloading Station for Component Handling..

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.

Description:

Conveyorised Three Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Conveyor:

PTFE Coated Mesh Belt with Vacuum Hold-down, SS Belts, Sandwich Nylon / Teflon Belt.

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.

Description:

Conveyorised Three Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Conveyor:

PTFE Coated Mesh Belt with Vacuum Hold-down, SS Belts, Sandwich Nylon / Teflon Belt.

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.

                Mouse over Image to Zoom

ACS Three Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 12 to 48 inches as standard.  Lamp powers are made available from 200 to 600 watts per inch (80 to 240 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor belts.  The systems are with 1, 2 & 3 lamps as per the application, custom built to suite your requirement.

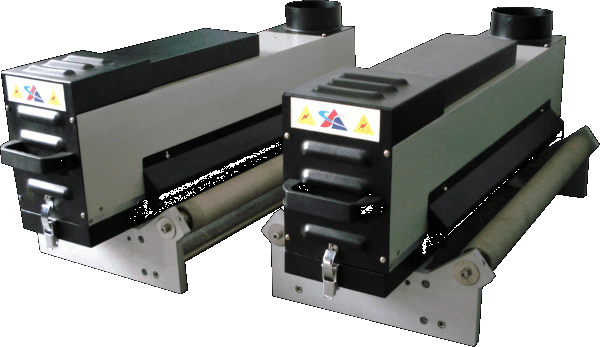

Inter - Deck UV Curing Module with Pneumatic Shutter

Application * Online UV Web offset Printing * Online UV Label Printing * Online UV Web Newsprint * Online UV 3D Curing  * Online UV Graver Printing * Online UV Flex Printing * Online UV Metalizing.







Description:

Interdeck UV Curing Module.

Curing Width:

12, 18, 20, 24, 25, 30, 32, 34, 38 & 40 inches.

UV Wattage:

400 (160), 500 (200) & 600 (240) watts/inch (watts/cm).

Reflector:

Pneumatic Rotary Actuator for shutter, Cold Mirror Reflector & Hot Mirror.

Web Speed:

Up to 1000 Feet per minute.

Cooling:

Centrifugal Blowers.


                Mouse over Image to Zoom

Compact UV Curing Module is used for UV curing application to cure lacquers, inks and surface coatings. Quartz UV lamp is mounted on a designed reflector, with shutter which is operated by pneumatic rotary actuator. These modules can be placed across the web with mounting brackets and rollers to provide smooth web transfer. Stand alone control panel with standard controls. Heat suction blowers are provided for UV Lamp and reflector cooling. We build system with various optional features on request. Complete panel controls like on/off indicator, lamp hour indicator, Amp meter, with required load contactor. The system can be supplied with features like continuously variable lamp power from 40 % to 100 %, controls with PLC, two line display MMI or Touch screen for process information & operation.

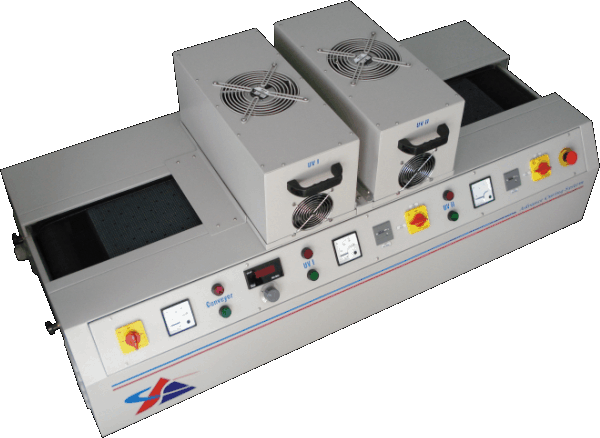

Conveyorised 2 Lamp Tabletop U V Curing System

Application * UV Screen Printing * UV Solder Mask for PCB * UV Spot Lamination * UV Conformal Coating * UV Metal Printing * UV Glass Bonding * UV Coating * UV End of the Press








Description:

Conveyorised Two Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Conveyor:

PTFE Coated Mesh Belt with Vacuum Hold-down, SS Belts, Sandwich Nylon / Teflon Belt.

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.


                Mouse over Image to Zoom

ACS Two Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 12 to 48 inches as standard.  Lamp powers are made available from 200 to 600 watts per inch (80 to 240 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor belts.  The systems are with 1, 2 & 3 lamps as per the application, custom built to suite your requirement.

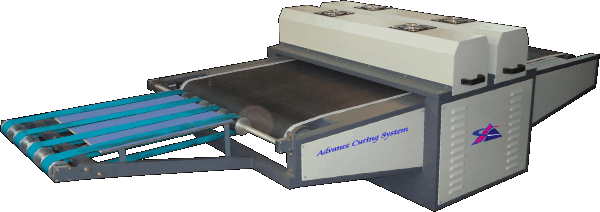

Conveyorised 2 Lamp End of Press U V Curing System

Application * Roll-on End of the Offset Press UV Curing * UV Ink Curing on PVC Sheets * UV Spot Lamination * UV Ink Curing for Metal Sheets *  UV Coating * UV End of the Press










                Mouse over Image to Zoom

ACS Two Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 12 to 48 inches as standard.  Lamp powers are made available from 200 to 600 watts per inch (80 to 240 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor belts.  The systems are with 1, 2 & 3 lamps as per the application, custom built to suite your requirement.

Conveyorised UV Adhesive Curing System

Application * Auto Components * Bonding of Glass with Metal * Auto Thermocouple Bonding * Syringe Needle Bonding * Auto Solenoid Switch Bonding * UV Glass Bonding * UV Coating * UV Conformal Coating.










                Mouse over Image to Zoom

ACS Single Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 12 to 48 inches as standard.  Lamp powers are made available from 200 to 600 watts per inch (80 to 240 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor, component curing on Production Line.  The systems are with 1, 2 & 3 lamps as per the application, custom built to suite your requirement.

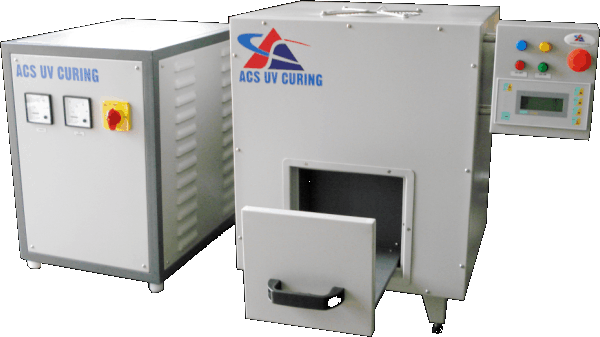

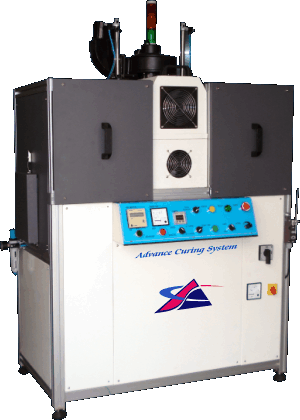

Batch Type UV Adhesive Curing System

Application * Auto Components * Bonding of Glass with Metal * Auto Thermocouple Bonding * Syringe Needle Bonding * Auto Solenoid Switch Bonding * UV Glass Bonding * UV Coating * UV Conformal Coating.










                Mouse over Image to Zoom

ACS Single Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 12 to 48 inches as standard.  Lamp powers are made available from 200 to 600 watts per inch (80 to 240 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor, component curing on Production Line.  The systems are with 1, 2 & 3 lamps as per the application, custom built to suite your requirement.

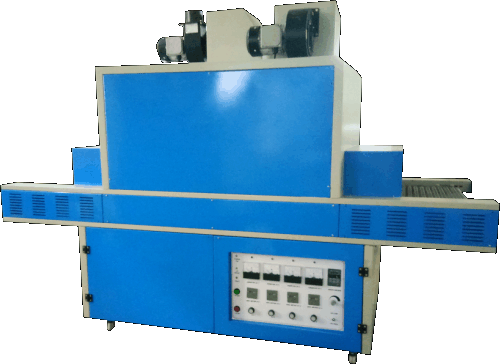

Conveyorised 4 Lamp UV Curing Machine for Shoe Industries

Application * Reducing Solvents in Sole Bonding * UV Screen Printing * UV Spot Lamination * UV EVA sole Bonding * UV pylon soles and insoles Bonding * UV Bonding * UV Sole Treatment * UV Primer Curing for sole Bonding



Mouseover Image









                Mouse over Image to Zoom





Description:

Conveyorised 4 Lamp UV Curing.

Lamp Module:

Complete with ACS design reflector with ACS designed lamp hood cooling.

Conveyor:

PTFE Coated Mesh Belt, SS Belts, Sandwich Nylon / Teflon Belt.

Control Panel:

Illuminated Push Button Operation with Phase indication, voltage display, Amp. Meter for UV lamp.

Power Supply:

Power supply built to suit any conditions.

Cooling:

Centrifugal Blowers.

ACS multiple Lamp Conveyorised UV Curing models are with Medium Pressure Hg Quartz Lamps having curing width from 10 to 12 inches as standard.  Lamp powers are made available from 200 watts per inch (80 watts per cm) with variable speed conveyor driven by AC Geared motor and suitable heat resistant conveyor belts.  The systems are with 1, 2, 3 & 4 lamps as per the application, custom built to suite the requirement.



Custom built solutions for Product development.

Our highly experienced promoters can turn any design into reality. Using practices that are considered the best quality standards of today, as well as the most modern technologies available, equipments are optimized for your production speed and will hold its own uniqueness as your business continues to grow. We are engaged in design and manufacture of UV & IR Systems required for high production rates with consistent quality which is today's need. Today we are of the well known designers & manufacturers who cater to stringent requirements of quality and productivity.

ACS UV Technologies has an innate understanding that as a client or prospective client you are looking for a company that can bring the most professional design ideas to your manufacturing requirements and give you a quality product that will streamline processes, increase efficiency and maximize reliability, which is why we continually adopt the latest technological advances to ensure that you benefit from innovative ideas.

ACS UV Technologies offer a full and complete package from initial enquiry to commissioning. Our expert specialist engineers have served the Automotive, Lighting, Heating, Printing, Coating and many other industries. Whether it be a simple hand held unit, or special purpose machine ACS has a solution for you. We have built on our skill base since our establishment in late 1994 and can now offer an extensive range of engineering resource and provide solutions up to the minute technology coupled with strong robust design.
